Charbroil 463742804

69 Parts Available for this Model

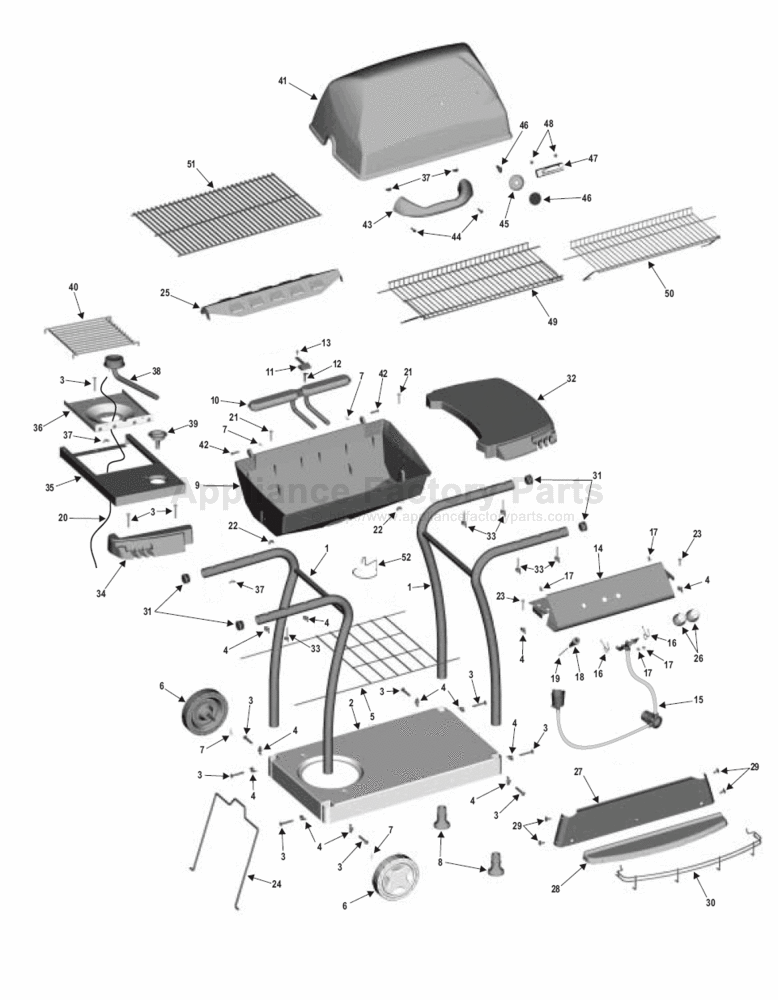

+ CLICK TO ENLARGE

All Parts for Charbroil 463742804

Bags

Ref.	Image	Part No & Description	Price
		CHR4254073 - Hardware Bag, Cart View Part Info	USD	Not Available

Burners and Venturi

Ref.	Part No & Description	Price
	CHR4154476 - Sb Valve Cup, Plastic, Quick Set, 01 Dr View Part Info	USD	Not Available
10	CHR4505084 - Burner/collector & Electrode Assy View Part Info	USD	Not Available
35	CHR4526146 - Sideburner Body View Part Info	USD	Not Available
38	CHR5068026 - Side Burner View Part Info	USD	Not Available

Controls

Ref.	Image	Part No & Description	Price
		CHR4165359 - Instr, Assy, 463742804 W/care & Use View Part Info	USD	Not Available
26		MCM040234222 - Control Knob; Universal View Part Info	USD $20.19

Cooking Grids

Ref.	Image	Part No & Description	Price
51		CG45SS - Cooking Grid Stainless Steel 13.875 X 24 View Part Info	USD $78.45

Frames

Ref.	Image	Part No & Description	Price
		CHR4500336 - Sideburner Frame View Part Info	USD	Not Available

Grates, Heat Plates, and Angles

Ref.	Image	Part No & Description	Price
25		CHR4500326 - Vaporiser Bar View Part Info	USD	Not Available
40		CHR4156376 - Grate, Side Burner, Black Porcelain, 95 View Part Info	USD	Not Available

Handles

Ref.	Image	Part No & Description	Price
37		CHR4080063 - Nut, Wing, #10-24, Type A, Stamped Steel View Part Info	USD $7.96
43		CHR4154473 - Handle View Part Info	USD	Not Available

Hardware

Ref.	Part No & Description	Price
	CHRSTD541625 - 1/4-20 Wing Nut. View Part Info	USD $0.00	Not Available
	CHRSTD512515 - Bolt, 1/4\-20 X 1-1/2\". View Part Info	USD $0.00	Not Available
	STD510603 - Screw 8 Pack View Part Info	USD $0.00	Not Available
3	CHR4080064 - #10-24x2” Carriage Bolt. View Part Info	USD $0.00	Not Available
13	CHR4080059 - Screw, Self Tap, #10-16 X 1/2, Type Ab, View Part Info	USD	Not Available
13b	CHRSTD611005 - Screw, Shoulder #10-16 X 1/2\. Please Em View Part Info	USD $0.00	Not Available
17	CHR4080043 - Screw, Self Tap, #10 X 1/2, T-20 Drive, View Part Info	USD $7.96
21	CHR4080615 - Bolt Carriage 1/4-20 X 1-1/4" Br Zn Nla View Part Info	USD	Not Available
21b	STD532512 - 1/4-20x1-1/4” Carriage Bolt. Please Emai View Part Info	USD $0.00	Not Available
22	CHR4080221 - 1/4-20 Wing Nut. View Part Info	USD $0.00	Not Available
23	CHR4080074 - #10-24x1-1/4” Carriage Bolt. Please Emai View Part Info	USD $0.00	Not Available
29	CHR4080679 - Fastener, Push, Black, 3/4" Sub 4080675 View Part Info	USD $0.75
33	CHR4080096 - #10-12x1-7/8” Wing Screw. View Part Info	USD $0.00	Not Available
42	CHR4156513 - Pin, Hinge, 1/4 X 1-1/8, Blk Zn View Part Info	USD	Not Available
48	CHR7000132 - Pal Nut. View Part Info	USD	Not Available

Hoses, Valves, and Regulators

Ref.	Part No & Description	Price
	CHR5970031 - Valve/hose/reg Assy View Part Info	USD	Not Available
15	CHR4524195 - Vhr Assy 7k Ef Wbc #56 Sb# 66 W/sb Cup03 View Part Info	USD	Not Available
16	CHR4151043 - Clip, F/valve/venturi View Part Info	USD	Not Available

Igniters

Ref.	Part No & Description	Price
11	CHR4500278 - W-collector Box, Twist/lock Electrode, S View Part Info	USD $7.96
12	CHR5156119 - Electrode, Mf2.5, Cb/th, 99 Drawing N View Part Info	USD $8.97
18	MCM020312003 - Spark Generator; Weber View Part Info	USD $9.87
19	MCM000340003 - Ignitor Wire; Lazy Man, Phoenix View Part Info	USD $3.93

Knobs

Ref.	Image	Part No & Description	Price
4		CHR4080091 - #10-24 Plastic Tee Knob. View Part Info	USD $0.00	Not Available

Other Parts

Ref.	Part No & Description	Price
	STD511003 - Screw-10-24x 3/8 View Part Info	USD $3.99
	CHR5950159 - Bottom Casting View Part Info	USD	Not Available
	CHR4071412 - Carton Outer 7/8k Kenmore Wbc 03 5041 View Part Info	USD	Not Available
	CHR5950185 - Wrp-casting, Top 7k Pro, 3 High, 11.360" View Part Info	USD	Not Available
	CHRG404-0034-W1 - Thermometer View Part Info	USD $8.97
	CHRTANK - Grill Does Not Come With A Tank View Part Info	USD	Not Available
1	CHR4503198 - Leg Assy View Part Info	USD	Not Available
7	CHR4080062 - Cotter Pin 1", 02. View Part Info	USD	Not Available
7b	STD624001 - 1” Hitch Pin. View Part Info	USD $0.00	Not Available
8	CHR80007917 - Leg Extender, (foot), Black Pp, Qs375, View Part Info	USD	Not Available
9	CHR4580578 - Bottom Casting View Part Info	USD	Not Available
24	CHR4151019 - Tank Retainer View Part Info	USD	Not Available
28	CHR4154518 - Condiment Tray View Part Info	USD	Not Available
30	CHR4151040 - Condiment Basket View Part Info	USD	Not Available
31	CHR4080065 - End Cap. View Part Info	USD $0.00	Not Available
37b	STD541610 - #10-24 Wing Nut. View Part Info	USD $0.00	Not Available
41	CHR4580652 - Top Casting View Part Info	USD	Not Available
44	STD511010 - Screw,mach, View Part Info	USD $3.99
45	CHR80000097 - Thermometer Bezel View Part Info	USD	Not Available
46	CHRG431-0020-W1 - Temperature Gauge, 11 View Part Info	USD $16.47
47	CHR4156081 - Logo Plate View Part Info	USD	Not Available
52	CHR80011874 - Clip, Grease Cup, 492, 07 View Part Info	USD $7.96

Panels

Ref.	Image	Part No & Description	Price
14		CHR4526173 - Control Panel View Part Info	USD	Not Available
27		CHR4503199 - Front Panel View Part Info	USD	Not Available

Shelves (Side)

Ref.	Part No & Description	Price
	CHR4254050 - Hardware Bag Shelves. View Part Info	USD	Not Available
	CHR4254076 - Snap-shelf,sbner,toolholder(4254068) 04 View Part Info	USD	Not Available
2	CHR4503196 - Bottom Shelf View Part Info	USD	Not Available
5	CHR4151034 - Midshelf Wire 7000 2003 View Part Info	USD	Not Available
32	CHR4154373 - Side Shelf View Part Info	USD	Not Available
34	CHR4154377 - Left Side Shelf View Part Info	USD	Not Available

Warming Racks

Ref.	Image	Part No & Description	Price
49		4152124 - Lower Swingaway View Part Info	USD $27.57
50		MCM121462554 - Warming Rack Universal, 15 X 6.5 View Part Info	USD $49.99

Wheels and Casters

Ref.	Image	Part No & Description	Price
6		CHR5995155 - Wheel Kit View Part Info	USD	Not Available
