Kenmore 119.16302800
79 Parts Available for this Model

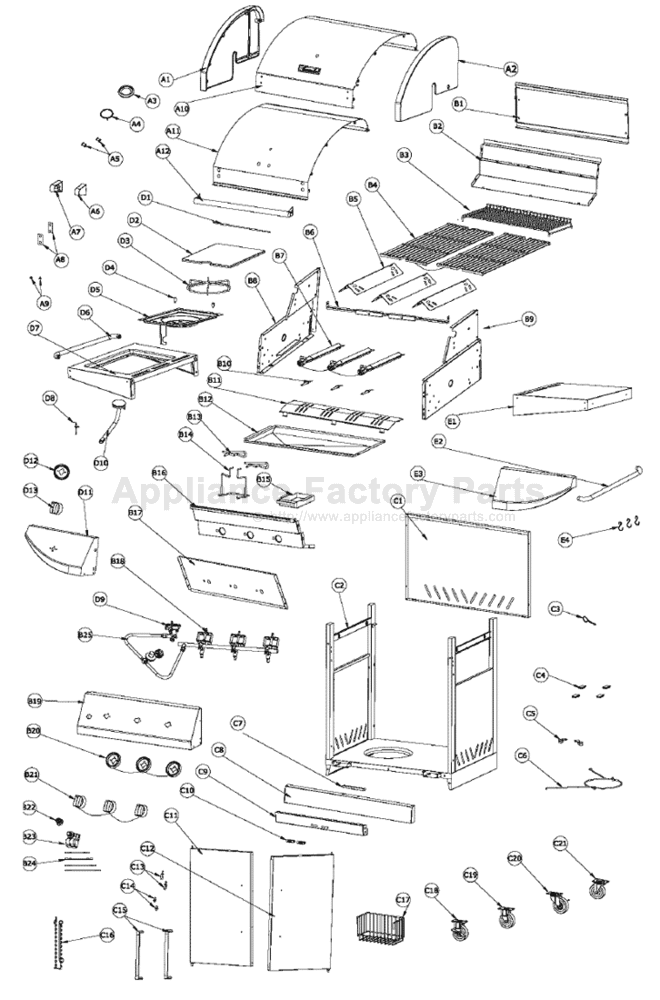

+ CLICK TO ENLARGE
All Parts for Kenmore 119.16302800
Burners and Venturi
| Part No & Description | Price | |||
|---|---|---|---|---|
| B7 |
|
MCM131623116 - Burner, Ss, 15.375 X 1; Kenmore View Part Info |
USD $22.78 | |
| D10 |
|
B06W1B-6-D9 - Side Burner View Part Info |
USD | Not Available |
Controls
| Part No & Description | Price | |||
|---|---|---|---|---|
| B21 |
|
MCM040234222 - Control Knob; Universal View Part Info |
USD $20.19 |
Cooking Grids
| Part No & Description | Price | |||
|---|---|---|---|---|
| B4 |
|
MCM616301223 - Grid, Ci, 18.75 X 23; Kenmore View Part Info |
USD $124.99 | |
| B4 |
|
CI0018-012 - Cooking Grate View Part Info |
USD $120.60 |
Frames
| Part No & Description | Price | |||
|---|---|---|---|---|
| D5 |
|
B06W1B-6-D5 - Side Burner Inner Frame. View Part Info |
USD $0.00 | Not Available |
| D7 |
|
B070E4-D7 - Side Burner Outer Frame Assembly View Part Info |
USD $15.99 | |
| El |
|
B06W1B-6-E1 - Side Shelf Assembly Frame View Part Info |
USD | Not Available |
Grates, Heat Plates, and Angles
| Part No & Description | Price | |||
|---|---|---|---|---|
| B17 |
|
B070E4-B17 - Firebox Front Heat Shield. View Part Info |
USD $0.00 | Not Available |
| B5 |
|
S1007-012E-016 - Heat Diffuser View Part Info |
USD $14.98 | |
| D3 |
|
SE0084 - Side Burner Grate View Part Info |
USD | Not Available |
Handles
| Part No & Description | Price | |||
|---|---|---|---|---|
| A12 |
|
MCM000120001 - Lid Handle ( Universal ) View Part Info |
USD $22.41 | |
| A12 |
|
B070E4-A12 - Hood Handle. View Part Info |
USD $0.00 | Not Available |
| A6 |
|
B06W1B-6-A6 - Hood Handle Seat - Right. View Part Info |
USD $0.00 | Not Available |
| A7 |
|
B06W1B-6-A7 - Hood Handle Seat- Left. View Part Info |
USD $0.00 | Not Available |
| A8 |
|
FE0010 - Heat Insulator For Lid Handle . View Part Info |
USD | Not Available |
| C15 |
|
B06W1B-6-C15 - Cabinet Door Handle. View Part Info |
USD | Not Available |
| E2 |
|
ASMC0012-08 - Towel Bar Handle View Part Info |
USD | Not Available |
Hardware
| Part No & Description | Price | |||
|---|---|---|---|---|
|
|
FIX91521 - Black Pan Head Screws. View Part Info |
USD | Not Available | |
| A5 |
|
B06W1B-6-A5 - Hood Bolt. View Part Info |
USD $0.00 | Not Available |
| B13 |
|
SE9049D-001 - Cotter Pin View Part Info |
USD $3.99 |
Hoses, Valves, and Regulators
| Part No & Description | Price | |||
|---|---|---|---|---|
| B25 |
|
MCM838003440 - Regulator W/hose View Part Info |
USD $62.10 | |
| C3 |
|
B06W1B-6-C3 - Regulator And Hose Support Ring. View Part Info |
USD $0.00 | Not Available |
| D9 |
|
B06W1B-6-D10 - Side Burner Valve. View Part Info |
USD | Not Available |
Igniters
| Part No & Description | Price | |||
|---|---|---|---|---|
| B10 |
|
MCM020402224 - Electrode; Outdoor Gourmet View Part Info |
USD $6.58 | |
| B22 |
|
119-4400-a - Ignitor Cap Assembly View Part Info |
USD $8.73 | |
| B23 |
|
MCM040334003 - Spark Generator Read Add. Info View Part Info |
USD $32.00 | |
| B23 |
|
SE0131 - Electronic Igniter View Part Info |
USD $0.00 | Not Available |
| B24 |
|
MCM010361003 - Ignitor Wire, Heavy Gauge, 1.2m, With 2. View Part Info |
USD $11.94 | |
| B24 |
|
B070E4-B24 - Electronic Igniter Wire Set View Part Info |
USD | Not Available |
| C16 |
|
SE0108D-001 - Manual Igniter Stick. View Part Info |
USD $0.00 | Not Available |
Knobs
| Part No & Description | Price | |||
|---|---|---|---|---|
| B21 |
|
MCM040234002 - Control Knob; Chg View Part Info |
USD $15.87 | |
| D12 |
|
B06W1B-6-B20 - Control Knob Seat. View Part Info |
USD | Not Available |
| D13 |
|
K14B - Knob View Part Info |
USD $8.03 |
Other Parts
| Part No & Description | Price | |||
|---|---|---|---|---|
| A3 |
|
CA0045D-002 - Thermometer Seat. View Part Info |
USD $0.00 | Not Available |
| A9 |
|
FE0001M - Silicon Stopper View Part Info |
USD $4.60 | |
| B12 |
|
SA0640-3 - Grease Tray View Part Info |
USD | Not Available |
| B14 |
|
SE0147 - Grease Cup Bracket View Part Info |
USD | Not Available |
| B15 |
|
S1020-023D-001 - Grease Pan View Part Info |
USD | Not Available |
| B18 |
|
SC0047 - Gas Manifold Assembly. View Part Info |
USD | Not Available |
| B6 |
|
ASMB0014-02 - Main Burner Bracket View Part Info |
USD $99.99 | |
| C10 |
|
SE0150 - Magnetic Door Stop. View Part Info |
USD $3.99 | |
| C11 |
|
B070E4-DB-C11 - Left Door. View Part Info |
USD $34.99 | |
| C12 |
|
B070E4-DB-C12 - Right Door. View Part Info |
USD $34.99 | |
| C13 |
|
SE0149 - Door Spring Pin. View Part Info |
USD $3.99 | |
| C14 |
|
B06W1B-6-C14 - Door Pin. View Part Info |
USD $3.99 | |
| C17 |
|
SE9027 - Condiment Basket. View Part Info |
USD $4.17 | |
| C2 |
|
B070E4-C2 - Cabinet Assembly. View Part Info |
USD $0.00 | Not Available |
| C4 |
|
FE0093 - Leg Caps. View Part Info |
USD $6.99 | |
| C5 |
|
B06W1B-6-C5 - Door Top Bracket Set. View Part Info |
USD $0.00 | Not Available |
| C6 |
|
SE0085D-002 - Cylinder Support Ring View Part Info |
USD $0.00 | Not Available |
| C7 |
|
B06W1B-6-C7 - Cabinet Door Stop. View Part Info |
USD $0.00 | Not Available |
| C8 |
|
B070E4-C8 - Cabinet Toe Plate. View Part Info |
USD $0.00 | Not Available |
| C9 |
|
B070E4-C9 - Cabinet Front Crossbar. View Part Info |
USD $0.00 | Not Available |
| D1 |
|
B06W1B-6-D1 - Side Burner Cover Pin. View Part Info |
USD $0.00 | Not Available |
| D2 |
|
SA0390 - Side Burner Cover. View Part Info |
USD | Not Available |
| D4 |
|
SB0045D-001 - Side Burner Stopper. View Part Info |
USD $0.00 | Not Available |
| D8 |
|
SE0083 - Side Burner Electrode. View Part Info |
USD $3.79 | |
| E4 |
|
SE0123-002 - S Hook. View Part Info |
USD $0.00 | Not Available |
Panels
| Part No & Description | Price | |||
|---|---|---|---|---|
| A10 |
|
ASMA0021-01 - Hood Outer Panel. View Part Info |
USD $0.00 | Not Available |
| A2 |
|
CA0044-R - Hood Right Side Panel. View Part Info |
USD $0.00 | Not Available |
| Al |
|
CA0044-L - Hood Left Side Panel. View Part Info |
USD $0.00 | Not Available |
| All |
|
B070E4-A11 - Hood Inner Panel. View Part Info |
USD $0.00 | Not Available |
| B16 |
|
B070E4-B16 - Firebox Front Panel. View Part Info |
USD $0.00 | Not Available |
| B19 |
|
B070E4-DB-B19 - Main Burner Control Panel. View Part Info |
USD $8.99 | |
| B2 |
|
B070E4-B2 - Firebox Rear Panel. View Part Info |
USD $0.00 | Not Available |
| B8 |
|
B06W1B-6-B8 - Firebox Left Side Panel. View Part Info |
USD $0.00 | Not Available |
| B9 |
|
B06W1B-6-B9 - Firebox Right Side Panel. View Part Info |
USD $0.00 | Not Available |
| Bl |
|
B070E4-B1 - Firebox Rear Upper Panel. View Part Info |
USD $0.00 | Not Available |
| Bll |
|
B070E4-B11 - Firebox Bottom Panel View Part Info |
USD | Not Available |
| Cl |
|
B070E4-C1 - Cabinet Rear Panel. View Part Info |
USD $0.00 | Not Available |
| D11 |
|
B070E4-DB-D11 - Side Burner Control Panel. View Part Info |
USD $23.99 | |
| E3 |
|
B070E4-DB-E3 - Side Shelf Control Panel. View Part Info |
USD $23.99 |
Temperature Gauges
| Part No & Description | Price | |||
|---|---|---|---|---|
| A4 |
|
MCM010001220 - Heat Indicator; Kenmore, Tera Gear, Uber View Part Info |
USD $22.05 |
Warming Racks
| Part No & Description | Price | |||
|---|---|---|---|---|
| B3 |
|
MCM121462554 - Warming Rack Universal, 15 X 6.5 View Part Info |
USD $49.99 |
Wheels and Casters
| Part No & Description | Price | |||
|---|---|---|---|---|
| C18 |
|
B06W1B-6-C18 - Locking Standard Caster. View Part Info |
USD | Not Available |
| C19 |
|
B06W1B-6-C19 - Standard Caster. View Part Info |
USD $6.99 | |
| C20 |
|
B06W1B-6-C20 - Locking Swivel Caster View Part Info |
USD | Not Available |
| C21 |
|
SE0081 - Swivel Caster View Part Info |
USD $27.00 |
Accessories for all BBQ Parts
Accessories
| Part No & Description | Price | |||
|---|---|---|---|---|
|
400-1076-0 - Hot Dog Basket Gas View Part Info |
USD | Not Available | |
|
SCRATCH-B-GONE - Scratch-b-gone Surface Restoration Kit View Part Info |
USD $93.10 | ||
|
17885 - Slap Ya Mama Cajun Seasoning 8 Oz View Part Info |
USD $5.42 | ||
|
GARLIC1 - Spicy Garlic Sauce 8 Oz. View Part Info |
USD $6.15 | ||
|
1788500005 - Slap Ya Mama 16oz Seasoning View Part Info |
USD $8.72 | ||
|
1788500009 - Slap Ya Mama 1lb Seafood Boil View Part Info |
USD $5.10 | ||
|
1788500026 - Slap Ya Mama Seasoned Cajun Fish Fry View Part Info |
USD $5.67 | ||
|
09748755122 - Cuzn Buddy Marinade 16oz. View Part Info |
USD $9.88 | ||
|
09748755349 - Pecan Injection Marinade 10oz View Part Info |
USD $10.75 | ||
|
09748755626 - Hawaiian Rib Rub Seasoning 12oz. View Part Info |
USD $14.50 | ||
|
09748755636 - Aloha Chicken And Fish Rub Seasoning View Part Info |
USD $14.62 |
Brushes
| Part No & Description | Price | |||
|---|---|---|---|---|
|
MCM737733007 - Grid Brush View Part Info |
USD $4.05 |
Other Accessories
| Part No & Description | Price | |||
|---|---|---|---|---|
|
812-5059-0 - Marinade Injector By Brinkmann View Part Info |
USD $9.99 |
Other Parts
| Part No & Description | Price | |||
|---|---|---|---|---|
|
400-0071-1 - Basket,fish Fryer. View Part Info |
USD $6.99 | ||
|
550-2392-0 - Cutting Board View Part Info |
USD $14.00 |
Temperature Gauges
| Part No & Description | Price | |||
|---|---|---|---|---|
|
WEB6750 - Instant-read Thermometer View Part Info |
USD $21.56 |
Warming Racks
| Part No & Description | Price | |||
|---|---|---|---|---|
|
812-7130-S - Warming Rack, Universal..read Ext Info View Part Info |
USD $10.99 |
