Nexgrill 720-0539
101 Parts Available for this Model

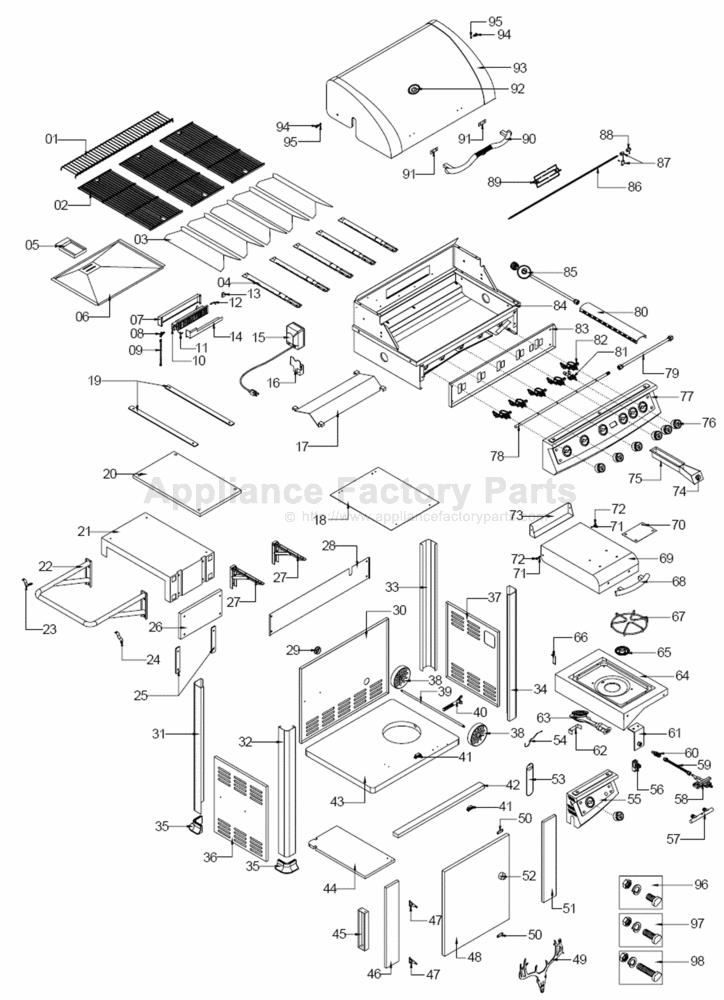

+ CLICK TO ENLARGE
All Parts for Nexgrill 720-0539
Burners and Venturi
| Part No & Description | Price | |||
|---|---|---|---|---|
|
NEX152501 - Aluminum Pipe, Side Burner View Part Info |
USD $56.00 | ||
|
10000301A0 - Main Burner-line 17 View Part Info |
USD $56.00 | ||
|
NEX11000037A0 - Side Burner Flex Gas Line A View Part Info |
USD $53.30 | ||
| 04 |
|
NEX497399 - None / Main Burner For 720-0539 View Part Info |
USD $50.00 | |
| 09 |
|
NEX497415 - Rotisserie Burner Flex Gas Line 720-0539 View Part Info |
USD $42.00 | |
| 10 |
|
NEX497414 - Rotisserie Burner For 720-0539 View Part Info |
USD $109.98 | |
| 14 |
|
NEX497416 - Rotisserie Burner Gas Collector 720-0539 View Part Info |
USD $16.10 | |
| 57 |
|
NEX497438 - Side Burner Manifold For 720-0539 View Part Info |
USD $30.00 | |
| 59 |
|
NEX497430 - None/ Side Burner Flex Gas Line 720-0539 View Part Info |
USD $29.40 | |
| 60 |
|
NEX497426 - Side Burner Brass Connector For 720-0539 View Part Info |
USD $16.10 | |
| 61 |
|
NEX497429 - Side Burner Fix Bracket For 720-0539 View Part Info |
USD $11.50 | |
| 62 |
|
NEX497425 - Side Burner Bracket For 720-0539 View Part Info |
USD $11.50 | |
| 63 |
|
NEX497439 - None/ Side Burner Pipe For 720-0539 View Part Info |
USD $56.00 | |
| 64 |
|
NEX497424 - Side Burner Bowl Assembly For 720-0539 View Part Info |
USD $280.00 | |
| 65 |
|
NEX497440 - Side Burner Ring For 720-0539 View Part Info |
USD $21.00 | |
| 69 |
|
NEX497433 - Side Burner Lid For 720-0539 View Part Info |
USD $59.98 | |
| 73 |
|
NEX497434 - Side Burner Lid Bracket For 720-0539 View Part Info |
USD $11.50 | |
| 84 |
|
NEX497400 - Main Burner Bowl Assembly For 720-0539 View Part Info |
USD $420.00 |
Cooking Grids
| Part No & Description | Price | |||
|---|---|---|---|---|
| 02 |
|
NEX497371 - Cooking Grid W/ Hole For 720-0539 View Part Info |
USD $109.98 |
Covers
| Part No & Description | Price | |||
|---|---|---|---|---|
| 53 |
|
NEX497396 - None / Lighting Rod Cover. View Part Info |
USD $0.00 | Not Available |
Doors
| Part No & Description | Price | |||
|---|---|---|---|---|
| 41 |
|
NEX497376 - Door Magnet For 720-0539 View Part Info |
USD $11.50 | |
| 47 |
|
NEX497375 - Door Hinge For 720-0539 View Part Info |
USD $16.10 | |
| 48 |
|
NEX497380 - Front Door For 720-0539 View Part Info |
USD $112.00 | |
| 49 |
|
NEX497373 - Door Decoration For 720-0539 View Part Info |
USD $29.40 | |
| 50 |
|
NEX497377 - Door Magnet Bracket For 720-0539 View Part Info |
USD $11.50 |
Frames
| Part No & Description | Price | |||
|---|---|---|---|---|
| 42 |
|
NEX497369 - Cart Frame, Front For 720-0539 View Part Info |
USD $42.00 |
Grates, Heat Plates, and Angles
| Part No & Description | Price | |||
|---|---|---|---|---|
| 03 |
|
NEX497378 - Flame Tamer For 720-0539 View Part Info |
USD $56.00 | |
| 13 |
|
NEX497418 - Rotisserie Burner Thermocouple Heat Shie View Part Info |
USD $16.10 | |
| 18 |
|
NEX497457 - Tank Heat Shield (discontinued) View Part Info |
USD $29.40 |
Handles
| Part No & Description | Price | |||
|---|---|---|---|---|
| 52 |
|
NEX497374 - Door Handle For 720-0539 View Part Info |
USD $31.48 | |
| 68 |
|
NEX497435 - Side Burner Lid Handle (discontinued) View Part Info |
USD $16.10 | |
| 74 |
|
NEX497453 - Smoke Tray Handle For 720-0539 View Part Info |
USD $16.10 | |
| 90 |
|
NEX497403 - Main Lid Handle For 720-0539 View Part Info |
USD $79.98 | |
| 91 |
|
NEX497404 - Main Lid Handle Heat Insulating Spacer View Part Info |
USD $11.50 |
Hardware
| Part No & Description | Price | |||
|---|---|---|---|---|
| 72 |
|
NEX497436 - Side Burner Lid Screw For 720-0539 View Part Info |
USD $16.10 | |
| 96 |
|
NEX497389 - Hardware - A For 720-0539 View Part Info |
USD $16.10 | |
| 97 |
|
NEX497390 - Hardware - B For 720-0539 View Part Info |
USD $16.10 | |
| 98 |
|
NEX497391 - Hardware - C For 720-0539 View Part Info |
USD $16.10 |
Hoses, Valves, and Regulators
| Part No & Description | Price | |||
|---|---|---|---|---|
| 58 |
|
NEX497385 - Gas Valve, Side (side Gas Valve) View Part Info |
USD $71.98 | |
| 79 |
|
NEX497431 - Side Burner Hose For 720-0539 View Part Info |
USD $29.40 | |
| 81 |
|
NEX497384 - Gas Valve, Rotisserie For 720-0539 View Part Info |
USD $71.98 | |
| 82 |
|
NEX497383 - Gas Valve, Main For 720-0539 View Part Info |
USD $71.98 | |
| 85 |
|
NEX497411 - Regulator, Lp For 720-0539 View Part Info |
USD $65.98 |
Igniters
| Part No & Description | Price | |||
|---|---|---|---|---|
| 11 |
|
NEX497417 - Rotisserie Burner Igniter Wire 720-0539 View Part Info |
USD $16.10 | |
| 54 |
|
NEX497397 - Lightingn Rod. 720-0539 View Part Info |
USD $16.10 | |
| 56 |
|
NEX497409 - (discontinued) Pulse Igniter Module (ele View Part Info |
USD $0.00 | Not Available |
| 66 |
|
NEX497432 - Side Burner Ingiter Wire For 720-0539 View Part Info |
USD $16.10 |
Knobs
| Part No & Description | Price | |||
|---|---|---|---|---|
| 76 |
|
NEX497370 - None/ Control Knob For 720-0539 View Part Info |
USD $29.40 |
Motors and Blades
| Part No & Description | Price | |||
|---|---|---|---|---|
| 15 |
|
NEX497419 - Rotisserie Motor For 720-0539 View Part Info |
USD $84.00 | |
| 16 |
|
NEX497420 - Rotisserie Motor Bracket For 720-0539 View Part Info |
USD $11.50 |
Other Parts
| Part No & Description | Price | |||
|---|---|---|---|---|
| 05 |
|
NEX497388 - Grease Tray (small) For 720-0539 View Part Info |
USD $29.40 | |
| 07 |
|
NEX497410 - Rear Baffle For 720-0539 View Part Info |
USD $84.00 | |
| 12 |
|
NEX497459 - Thermocouple For 720-0539 View Part Info |
USD $16.10 | |
| 27 |
|
NEX497395 - Left Side Support Bracket For 720-0539 View Part Info |
USD $11.50 | |
| 29 |
|
NEX497422 - Rubber Grommet For 720-0539 View Part Info |
USD $16.10 | |
| 40 |
|
NEX497456 - Tank Bolt For 720-0539 View Part Info |
USD $16.10 | |
| 44 |
|
NEX497392 - Horizontal Bar Barrier For 720-0539 View Part Info |
USD $29.40 | |
| 45 |
|
NEX497460 - Vertical Bar Barrier For 720-0539 View Part Info |
USD $29.40 | |
| 67 |
|
NEX497428 - None/ Side Burner Cooking Grid 720-0539 View Part Info |
USD $29.40 | |
| 70 |
|
NEX497398 - Logo For 720-0539 View Part Info |
USD $16.10 | |
| 71 |
|
NEX497437 - Side Burner Lid Screw Cover For 720-0539 View Part Info |
USD $11.50 | |
| 75 |
|
NEX497451 - Smoke Tray For 720-0539 View Part Info |
USD $16.10 | |
| 78 |
|
NEX497407 - Manifold, Main For 720-0539 View Part Info |
USD $111.98 | |
| 80 |
|
NEX497452 - Smoke Tray Cover For 720-0539 View Part Info |
USD $42.00 | |
| 83 |
|
NEX497379 - Front Baffle For 720-0539 View Part Info |
USD $84.00 | |
| 87 |
|
NEX497372 - Counter Balance For 720-0539 View Part Info |
USD $16.10 | |
| 88 |
|
NEX497423 - Shaft Collar For 720-0539 View Part Info |
USD $16.10 | |
| 92 |
|
NEX497458 - Temperature Gauge For 720-0539 View Part Info |
USD $18.40 | |
| 93 |
|
NEX497402 - Main Lid For 720-0539 View Part Info |
USD $239.98 | |
| 94 |
|
NEX497405 - Main Lid Screw For 720-0539 View Part Info |
USD $16.10 | |
| 95 |
|
NEX497406 - Main Lid Screw Cover For 720-0539 View Part Info |
USD $11.50 |
Panels
| Part No & Description | Price | |||
|---|---|---|---|---|
| 06 |
|
NEX497387 - Grease Slide Panel, Bottom For 720-0539 View Part Info |
USD $70.00 | |
| 17 |
|
NEX497386 - Grease Slide Panel, Top For 720-0539 View Part Info |
USD $42.00 | |
| 26 |
|
NEX497447 - Side Shelf Wooden Mount Panel, Left View Part Info |
USD $16.10 | |
| 28 |
|
NEX497366 - Back Panel, Up For 720-0539 View Part Info |
USD $42.00 | |
| 30 |
|
NEX497365 - Back Panel For 720-0539 View Part Info |
USD $112.00 | |
| 31 |
|
NEX497394 - Left Side Panel Cart Leg, Rear 720-0539 View Part Info |
USD $42.00 | |
| 32 |
|
NEX497393 - Left Side Panel Cart Leg, Front 720-0539 View Part Info |
USD $42.00 | |
| 33 |
|
NEX497413 - Right Side Panel Cart Leg, Rear 720-0539 View Part Info |
USD $42.00 | |
| 34 |
|
NEX497412 - Right Side Panel Cart Leg, Front View Part Info |
USD $42.00 | |
| 36 |
|
NEX497441 - Side Panel Left (discontinued) View Part Info |
USD $119.98 | |
| 37 |
|
NEX497442 - Side Panel, Right For 720-0539 View Part Info |
USD $119.98 | |
| 43 |
|
NEX497367 - Bottom Panel, Lp For 720-0539 View Part Info |
USD $140.00 | |
| 46 |
|
NEX497381 - Front Trim Panel, Left For 720-0539 View Part Info |
USD $51.98 | |
| 51 |
|
NEX497382 - Front Trim Panel, Right For 720-0539 View Part Info |
USD $51.98 | |
| 55 |
|
NEX497427 - Side Burner Control Panel For 720-0539 View Part Info |
USD $71.98 | |
| 77 |
|
NEX497401 - Control Panel, Main For 720-0539 View Part Info |
USD $119.98 |
Rotisseries
| Part No & Description | Price | |||
|---|---|---|---|---|
| 08 |
|
NEX497421 - Rotisserie Orifice W/ Brass Elbow View Part Info |
USD $16.10 | |
| 86 |
|
NEX497455 - (discontinued) Spit Rod For 720-0539 View Part Info |
USD $0.00 | Not Available |
| 89 |
|
NEX497454 - Spit Fork For 720-0539 View Part Info |
USD $39.98 |
Shelves (Side)
| Part No & Description | Price | |||
|---|---|---|---|---|
| 19 |
|
NEX497443 - Side Shelf Long Trim Piece, Left/right View Part Info |
USD $21.00 | |
| 20 |
|
NEX497448 - Side Shelf Wooden Top, Left For 720-0539 View Part Info |
USD $29.40 | |
| 21 |
|
NEX497449 - Side Shelf, Left For 720-0539 View Part Info |
USD $119.98 | |
| 22 |
|
NEX497444 - Side Shelf Push Bar For 720-0539 View Part Info |
USD $40.00 | |
| 23 |
|
NEX497446 - Side Shelf Push Bar Bracket, Rear View Part Info |
USD $11.50 | |
| 24 |
|
NEX497445 - Side Shelf Push Bar Bracket, Front View Part Info |
USD $11.50 | |
| 25 |
|
NEX497450 - Side Shlef Short Trim Piece, Left View Part Info |
USD $16.10 |
Warming Racks
| Part No & Description | Price | |||
|---|---|---|---|---|
| 01 |
|
NEX497461 - Warming Rack For 720-0539 View Part Info |
USD $70.00 |
Wheels
| Part No & Description | Price | |||
|---|---|---|---|---|
| 38 |
|
NEX497462 - Wheel For 720-0539 View Part Info |
USD $39.98 | |
| 39 |
|
NEX497463 - Wheel Axle For 720-0539 View Part Info |
USD $16.10 |
Wheels and Casters
| Part No & Description | Price | |||
|---|---|---|---|---|
| 35 |
|
NEX497368 - Cart Caster Insert For 720-0539 View Part Info |
USD $10.00 |
Accessories for all BBQ Parts
Accessories
| Part No & Description | Price | |||
|---|---|---|---|---|
|
400-1076-0 - Hot Dog Basket Gas View Part Info |
USD | Not Available | |
|
SCRATCH-B-GONE - Scratch-b-gone Surface Restoration Kit View Part Info |
USD $93.10 | ||
|
17885 - Slap Ya Mama Cajun Seasoning 8 Oz View Part Info |
USD $5.42 | ||
|
GARLIC1 - Spicy Garlic Sauce 8 Oz. View Part Info |
USD $6.15 | ||
|
1788500005 - Slap Ya Mama 16oz Seasoning View Part Info |
USD $8.72 | ||
|
1788500009 - Slap Ya Mama 1lb Seafood Boil View Part Info |
USD $5.10 | ||
|
1788500026 - Slap Ya Mama Seasoned Cajun Fish Fry View Part Info |
USD $5.67 | ||
|
09748755122 - Cuzn Buddy Marinade 16oz. View Part Info |
USD $9.88 | ||
|
09748755349 - Pecan Injection Marinade 10oz View Part Info |
USD $10.75 | ||
|
09748755626 - Hawaiian Rib Rub Seasoning 12oz. View Part Info |
USD $14.50 | ||
|
09748755636 - Aloha Chicken And Fish Rub Seasoning View Part Info |
USD $14.62 |
Brushes
| Part No & Description | Price | |||
|---|---|---|---|---|
|
MCM737733007 - Grid Brush View Part Info |
USD $4.05 |
Other Accessories
| Part No & Description | Price | |||
|---|---|---|---|---|
|
812-5059-0 - Marinade Injector By Brinkmann View Part Info |
USD $9.99 |
Other Parts
| Part No & Description | Price | |||
|---|---|---|---|---|
|
400-0071-1 - Basket,fish Fryer. View Part Info |
USD $6.99 | ||
|
550-2392-0 - Cutting Board View Part Info |
USD $14.00 |
Temperature Gauges
| Part No & Description | Price | |||
|---|---|---|---|---|
|
WEB6750 - Instant-read Thermometer View Part Info |
USD $21.56 |
Warming Racks
| Part No & Description | Price | |||
|---|---|---|---|---|
|
812-7130-S - Warming Rack, Universal..read Ext Info View Part Info |
USD $10.99 |
Tip:Steaks should be cooked on a piping hot grill - as hot as you can get it. Make sure to sear all sides for maximum flavour.
